Lighting problems rarely come from lack of power. They come from fixtures that take up too much space, slow down setup, or demand constant adjustment. By the time everything is ready, the moment you wanted to capture is already gone.
The Godox LiteWafer UP150R was built to remove those obstacles. It is a 150W RGBWW LED panel that stays slim, portable, and powerful, making it easy to move between studio and location work. Instead of bulky designs and complex controls, it delivers clean light, accurate color, and fast setup that fits real-world shooting conditions.
Positioned between entry-level RGB panels and high-end cinema lights, the UP150R is designed for creators who want professional results without building a massive lighting rig. Its ultra-thin form, flexible mounting, and reliable performance make it a natural fit for interviews, YouTube content, films, commercials, and branded productions.
The Godox LiteWafer UP150R Features & Specifications
| Feature | Specification |
|---|---|
| Fixture Type | 150W RGBWW LED panel |
| Maximum Brightness | 20,400 lux at 1 m (5600K) |
| Color Temperature | 1,800K – 10,000K |
| Color Modes | CCT, HSI, RGBW, GEL |
| Built-In Effects | 14 lighting effects |
| Color Accuracy | CRI ≈ 97, TLCI ≈ 98 |
| Green/Magenta Control | –100% to +100% |
| Panel Size | 354 × 24 × 680 mm |
| Weight (Body Only) | Approx. 3.2 kg |
| Cooling | Quiet active cooling |
| Control | Onboard + wireless app |
| Power | AC and V-mount battery |
| Expansion | Dual-panel support |

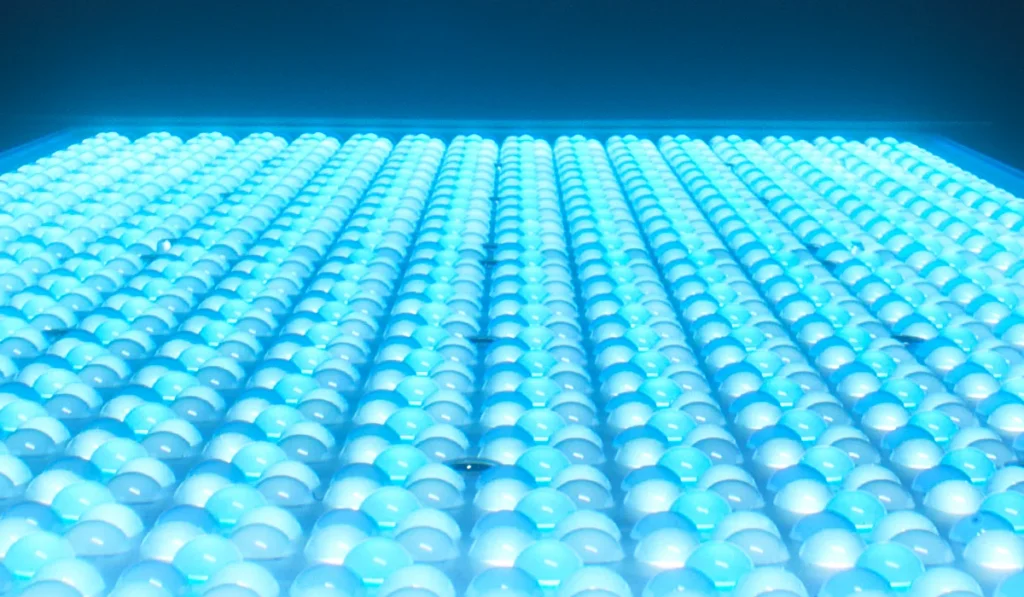

Bright Output That Punches Above Its Size
The Godox LiteWafer UP150R uses a 150W RGBWW light engine that delivers far more brightness than its slim body suggests. Godox rates the fixture at 20,400 lux at 1 meter (5600K). Many LED panels in the same size class average between 9,000 and 12,000 lux, meaning the UP150R produces roughly 70-120% more usable light.
This performance comes from high-efficiency LED chips paired with precision optical lenses. Godox also claims up to a four-times brightness boost compared to traditional panel designs, while still maintaining soft, even light suitable for faces and interviews.

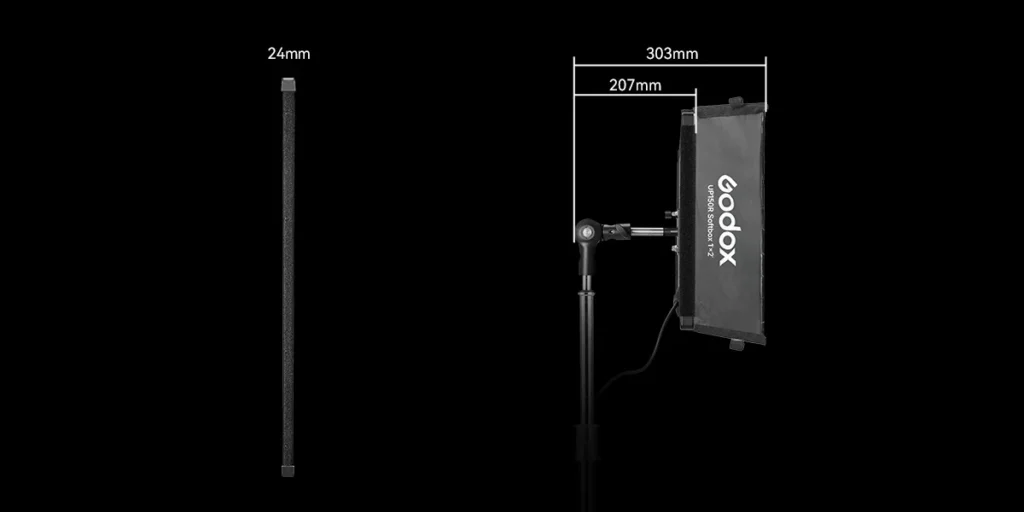

Slim Design With Flexible Mounting
The UP150R measures 354 × 24 × 680 mm (or 13.94 × 0.95 × 26.77 inches) and weighs about 3.2 kg (7.05 lb). At just 24 mm thick, it fits easily into tight studio spaces where larger panels struggle. This slim profile allows for easier mounting on stands, boom arms, and close wall placements. It also makes packing and transport much simpler for mobile creators.
Accurate Color You Can Trust
Color accuracy is where the UP150R clearly targets professional use. The fixture delivers a CRI of approximately 97 and a TLCI of approximately 98, placing it firmly within broadcast and cinema standards. These numbers indicate that colors captured under the light will closely match real-life tones, especially skin tones.
The panel also offers green–magenta adjustment across a full -100% to +100% range. This allows precise correction when matching the UP150R with other light sources on set. For filmmakers, DITs, and colorists, this flexibility reduces time spent fixing mismatched lighting during post-production.

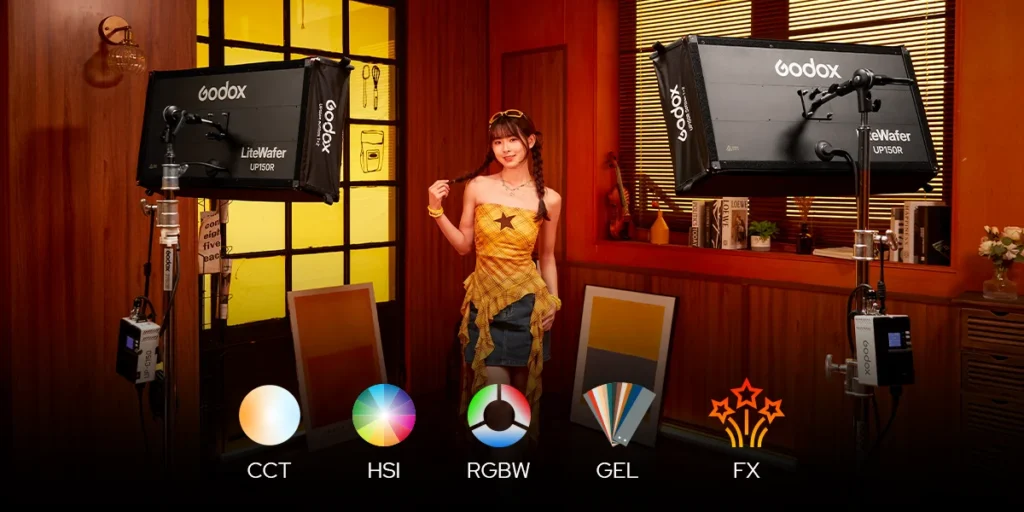

Full Color Control and Effects
Color control on the UP150R goes far beyond basic RGB sliders. The fixture supports HSI, RGBW, and GEL modes, allowing users to shape color with precision rather than guesswork. The CCT range spans from 1,800K to 10,000K, covering warm candlelight, tungsten interiors, neutral daylight, and cool stylized tones.
The dedicated GEL mode replicates common color correction and creative gels digitally, removing the need for physical filters. For storytelling and stylized scenes, the UP150R includes 14 built-in lighting effects, ranging from practical simulations like lightning and TV flicker to more expressive visual looks. These effects are adjustable, giving creators control instead of locked presets.

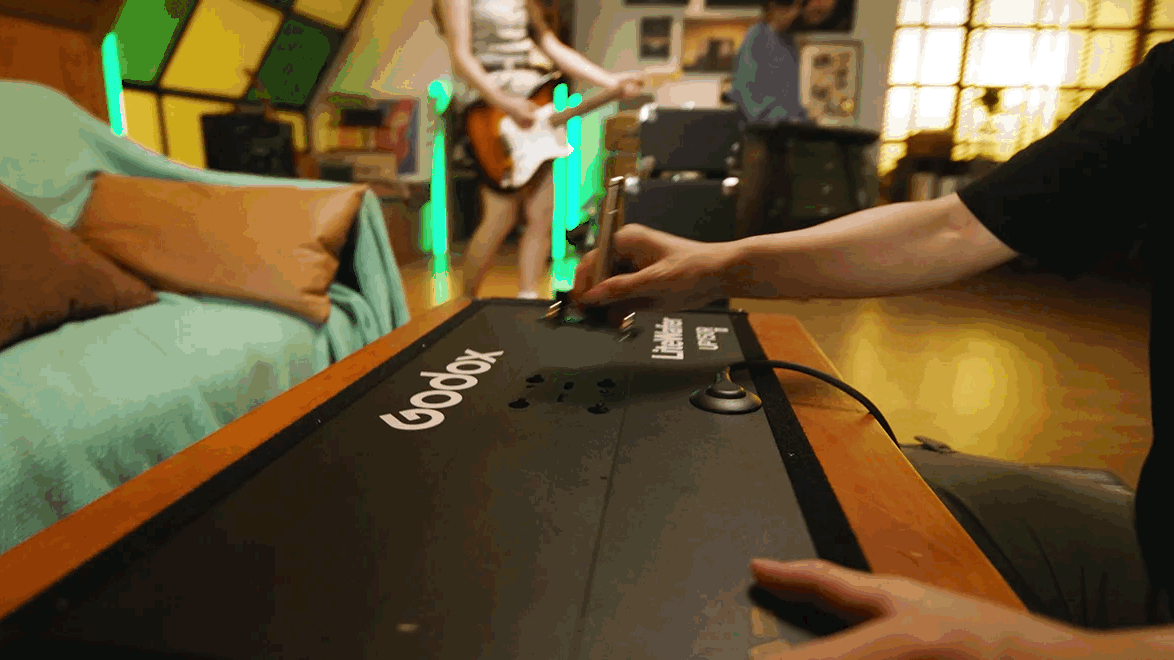

Fast Setup, Faster Teardown
The Godox LiteWafer UP150R is designed to move quickly from case to camera-ready. Its integrated design reduces the number of separate components needed during setup. Controls are laid out clearly, mounts lock securely, and adjustments can be made without tools.
In real terms, this means shaving minutes off every setup and teardown. Over a full shoot day, that time savings adds up. For solo creators, documentary shooters, and small crews, the ability to light a scene quickly without sacrificing quality is a major workflow advantage.
Dual-Panel Expansion Support
For creators who need more output or wider coverage, the UP150R supports dual-panel expansion. Two units can be combined to function as a single, unified light source, effectively doubling coverage while maintaining consistent color and control.This feature provides a clear upgrade path. Instead of replacing lights as projects grow, users can expand their setup gradually while keeping the same workflow and visual consistency.

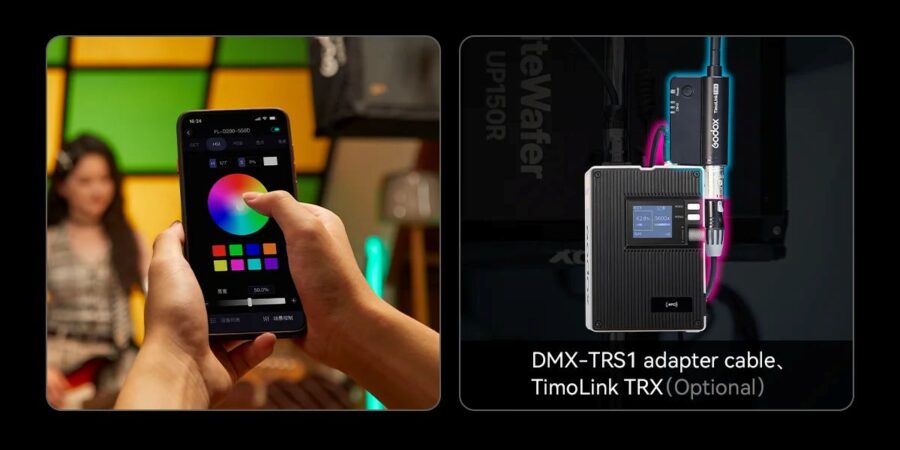

Simple and Smart Control Options
The UP150R offers dual control options to suit different working styles. Onboard controls provide direct access to brightness, color temperature, and RGB settings for quick adjustments. For more complex setups, wireless control allows remote operation, grouping, and preset management.
This combination supports both simple, fast shoots and larger multi-light environments. Adjustments can be made without physically touching the fixture, which helps maintain focus and continuity during production.

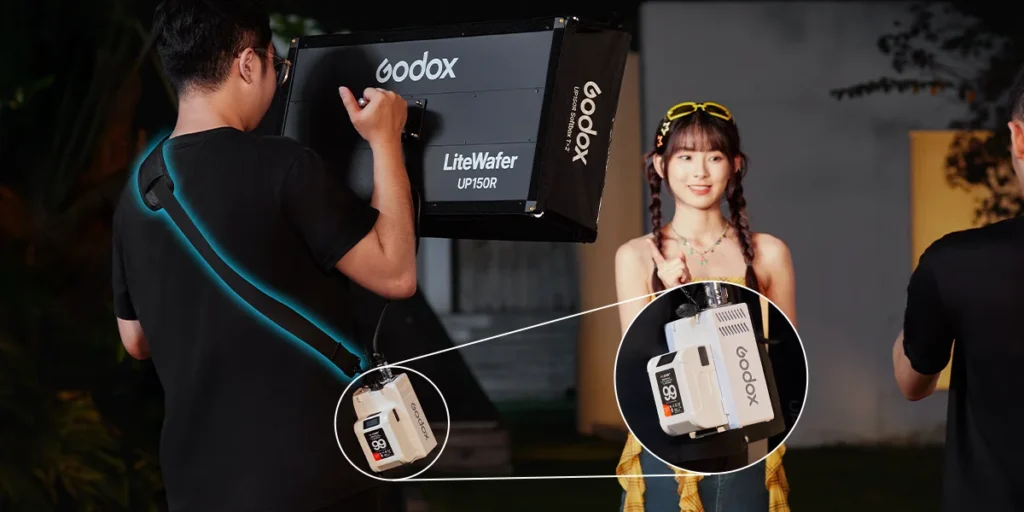

Flexible Power for Any Location
Power flexibility is essential for modern production. The Godox LiteWafer UP150R supports standard AC power as well as battery operation, allowing seamless transitions between studio and location work. Because the fixture remains lightweight and slim, battery operation does not feel like a compromise. This makes it especially useful for outdoor shoots, temporary locations, or spaces without reliable power access.

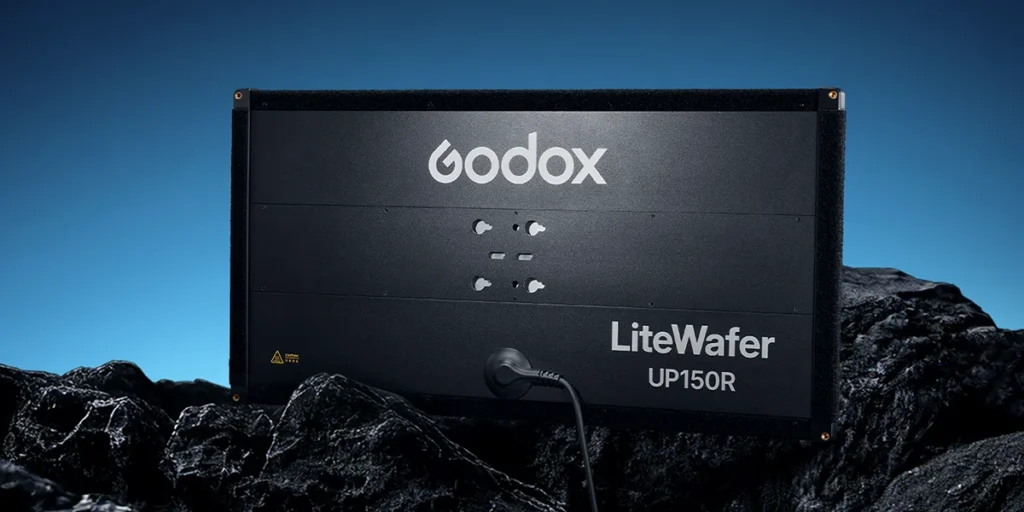

Quiet and Efficient Cooling
High output often leads to heat, but the UP150R manages this with an efficient thermal system designed for long runtimes. The internal cooling keeps temperatures stable while maintaining consistent brightness, even during extended use.
Fan noise is kept low, making the light suitable for interviews and dialogue-heavy scenes where clean audio is essential. The result is a fixture that performs reliably without drawing attention to itself on set.
Pricing and Availability of Both Options
The Godox LiteWafer UP150R comes in single and 2-light kit versions, making it easy to pick what fits your needs. The single unit costs $699 USD. It’s available now at stores like B&H Photo, Godox’s website, and other photo gear shops. Prices might change by region due to taxes, but it’s ready for order with fast shipping options.

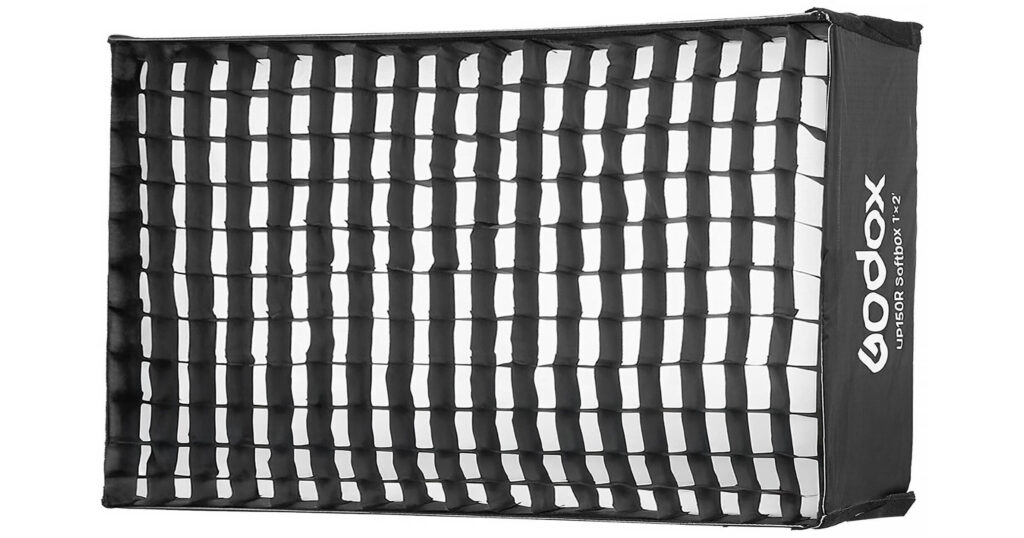

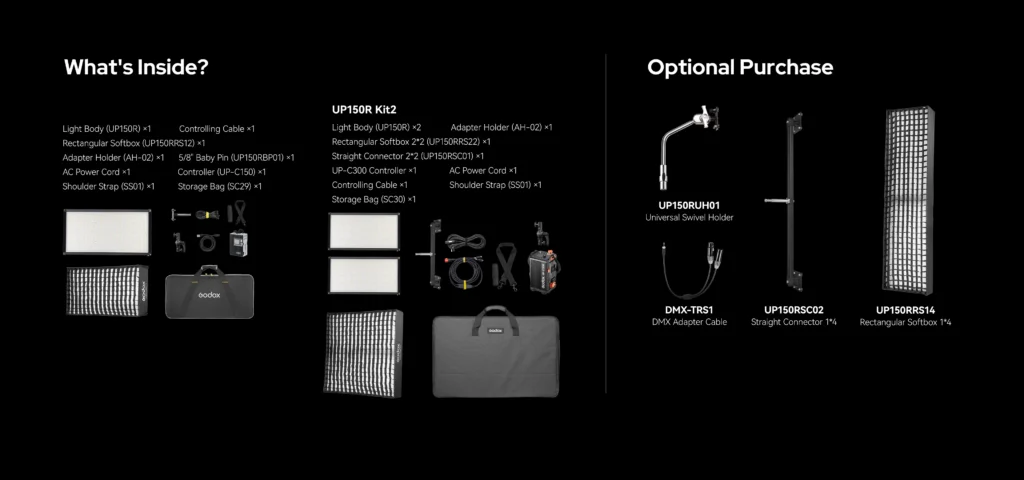

The 2-light kit, which includes two panels, a bigger softbox, connectors, and a bag, is coming soon. Right now, it’s listed as “New Item – Coming Soon” on sites like B&H, with no set price yet. Expect it around $1,200 to $1,400 based on similar Godox kits, but check for updates. Both options support free shipping on big orders and work worldwide.
